TREK

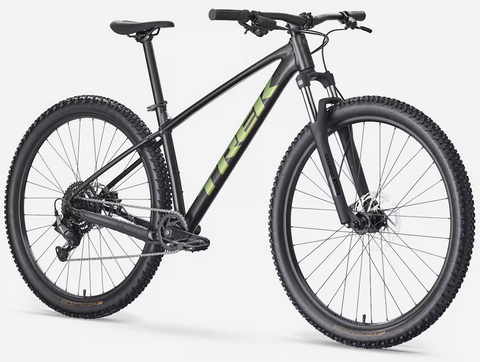

Trek Marlin 4 Mountain Bike

  • Sale
  • Regular price $579.99


This Bike cannot be shipped but can be purchased online and picked up at store.

Marlin 4 is the perfect gateway to trail riding. It's ideal for new riders who want a mountain bike with knobby tires that can double as a rugged commuter. Disc brakes, front suspension, 21 speeds, and mounts for a rack and fenders make this a great bike for new trail riders and campus commuters alike.

It's right for you if...

You want an introductory mountain bike at an incredible price, but also want a commuter that's rugged enough to hop curbs on the way to class.

The tech you get

A lightweight aluminum frame with internal routing to protect your cables and add to the bike's sleek look, 21 speeds, a wide range of gearing so you always have the right gear for your terrain, powerful mechanical disc brakes, and a suspension fork that takes the edge off bumps and rough terrain.

The final word

Marlin is made for any adventure. The rack and fender mounts make it a great choice for commuters who want to get a little rad on the way to class or the grocery store.

Frameset
Frame Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
*Fork Size: XS
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: S
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Max compatible fork travel 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
Wheels
Hub front Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR
Rim Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes 14g stainless steel
*Tire Size: XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00''
Max tire size Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer
Drivetrain
Shifter Shimano Altus EF500, 7 speed
Front derailleur Shimano Tourney TY300, 34.9mm clamp, down swing, down pull
Rear derailleur Shimano Tourney TY300, long cage, 34T max cog
*Crank Size: XS , S , M
Shimano Tourney TY301, 42/34/24, 170mm length
Size: ML , L , XL , XXL
Shimano Tourney TY301, 42/34/24, 175mm length
Bottom bracket VP BC73, 73mm, threaded cartridge
Cassette Shimano TZ500, 14-28, 7 speed
Chain KMC Z7, 7 speed
Pedal VP-536 nylon platform
Max chainring size 1x/2x: 34T, 3x: 42T
Components
Saddle Bontrager Arvada, steel rails, 138mm width
*Seatpost Size: XS , S
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: M
Bontrager alloy, 31.6mm, 12mm offset, 360mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar Size: XS , S
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips Bontrager XR Endurance Comp, lock-on
*Stem Size: XS
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: S
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: M
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: ML , L
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: XL , XXL
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset Semi-integrated, 1-1/8''
*Brake Size: XS , S , M , ML , L , XL , XXL
Tektro MD-M280 mechanical disc, 160mm rotor
Size: XS , S , M , ML , L , XL , XXL
Tektro MD-M281 mechanical disc, 160mm rotor

Weight
Weight M - 30.82 lbs / 13.9815 kg
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
